Freeze drying has become an increasingly popular method for preserving food and other materials while maintaining their original qualities. While commercial freeze dryers can be expensive, many enthusiasts wonder if it's possible to make a DIY freeze dryer at home. In this comprehensive guide, we'll explore the process of building your own freeze dryer, discussing the components, steps, and considerations involved in this ambitious project.
Before diving into the construction process, it's essential to understand what freeze drying entails. Freeze drying, also known as lyophilization, is a dehydration process that removes moisture from frozen materials through sublimation. This occurs when frozen water transitions directly from a solid to a gas state without passing through the liquid phase.
The freeze drying process typically involves three main steps:
1. Freezing the material at extremely low temperatures
2. Creating a vacuum environment to facilitate sublimation
3. Applying controlled heat to remove remaining bound water molecules

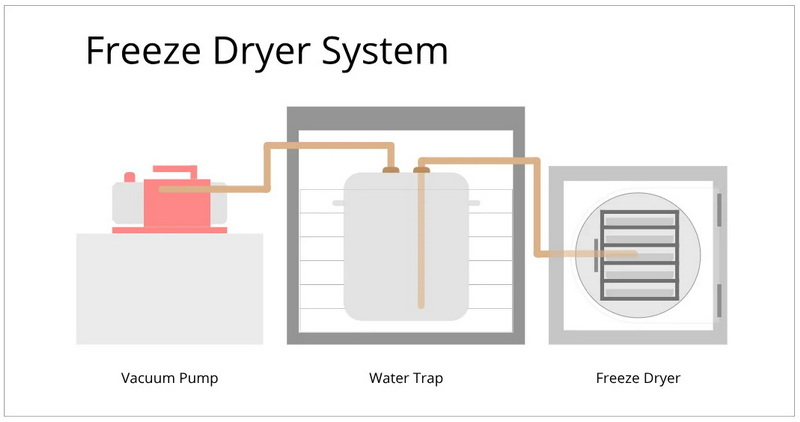

To build a freeze dryer, you'll need several key components:
The vacuum chamber is where the freeze drying process takes place. It needs to be airtight and capable of withstanding low pressures.
A high-quality vacuum pump is crucial for creating and maintaining the low-pressure environment necessary for sublimation.
This can be achieved using dry ice or a mechanical refrigeration system to freeze the material and maintain low temperatures.
A controlled heating element is used during the final stages of freeze drying to remove any remaining bound water.
This includes temperature sensors, pressure gauges, and potentially a microcontroller to automate the process.
The vacuum chamber is the heart of your freeze dryer. Here's how to create one:
1. Choose a sturdy, airtight container. Stainless steel is an excellent choice due to its durability and resistance to temperature changes.
2. Install silicone gaskets around the lid to ensure an airtight seal.
3. Add ports for the vacuum pump connection and any sensors you plan to use.
A proper vacuum system is crucial for effective freeze drying:
1. Select a two-stage rotary vane vacuum pump capable of reaching at least 0.1 millibar.
2. Connect the pump to the chamber using appropriate fittings and tubing.
3. Install a vacuum gauge to monitor pressure levels inside the chamber.
You have two main options for cooling:
1. Dry Ice Method:
- Create a container within the chamber to hold dry ice.
- Insulate the container to maintain low temperatures.
- Ensure a system for safely adding dry ice as needed.
2. Mechanical Cooling:
- Install a refrigeration unit capable of reaching very low temperatures.
- Connect the cooling system to the chamber, ensuring proper insulation.
A controlled heating element is necessary for the final stages of freeze drying:
1. Install heating plates or elements beneath the trays holding the material to be freeze-dried.
2. Connect the heating system to a temperature controller for precise management.
To automate and monitor the freeze drying process:
1. Install temperature sensors at various points in the chamber.
2. Set up a pressure sensor to monitor vacuum levels.
3. Consider using a microcontroller (like an Arduino) to manage the entire system, including cooling, heating, and vacuum cycles.
1. Cost-Effectiveness: While the initial investment in components can be significant, building your own freeze dryer can be more affordable than purchasing a commercial unit.
2. Customization: DIY freeze dryers allow for customization based on your specific needs and available space.
3. Learning Experience: Building a freeze dryer provides valuable insights into the principles of thermodynamics, vacuum technology, and food preservation.
4. Scalability: You can start small and expand your system as needed.
While building a DIY freeze dryer can be rewarding, it comes with several challenges:
1. Technical Complexity: Freeze drying involves precise control of temperature and pressure, which can be difficult to achieve without specialized knowledge.
2. Safety Concerns: Working with vacuum systems and extremely low temperatures poses potential safety risks.
3. Quality Control: Ensuring consistent results may be more challenging with a DIY system compared to commercial units.
4. Time Investment: Building and fine-tuning a DIY freeze dryer requires a significant time commitment.
1. Start Small: Begin with a simple, small-scale system before attempting larger projects.
2. Research Thoroughly: Study commercial freeze dryer designs and scientific literature on lyophilization.
3. Use Quality Components: Invest in high-quality vacuum pumps, seals, and sensors to ensure reliable performance.
4. Prioritize Safety: Always follow proper safety protocols when working with vacuum systems and extreme temperatures.
5. Document Your Process: Keep detailed records of your design, construction, and testing phases for future reference and improvements.
Building a DIY freeze dryer is an ambitious but achievable project for those with technical skills and a passion for food preservation. While it requires careful planning, significant time investment, and attention to detail, the result can be a functional freeze dryer tailored to your specific needs. However, it's important to weigh the benefits against the challenges and consider whether a commercial unit might be more suitable for your requirements.
Whether you choose to build your own freeze dryer or opt for a commercial model, freeze drying offers unique advantages in food preservation and beyond. As technology continues to advance, we may see more accessible and efficient methods for home freeze drying in the future.
The cost of building a DIY freeze dryer can vary widely depending on the components used and the scale of the project. Generally, you can expect to spend between $500 to $2000 for a basic setup. This includes the cost of the vacuum pump, chamber materials, cooling system, and control components. However, keep in mind that higher-quality components or larger systems can increase the cost significantly.
While it is possible to build a safe DIY freeze dryer, there are inherent risks involved. Working with vacuum systems and extremely low temperatures requires careful handling and proper safety precautions. It's crucial to thoroughly research safety protocols, use appropriate protective equipment, and ensure all components are properly rated for their intended use. If you're unsure about any aspect of the build or operation, it's best to consult with experts or consider a commercial unit.
The time required to freeze dry food in a DIY freeze dryer can vary depending on the food type, its water content, and the efficiency of your system. Generally, you can expect the process to take anywhere from 20 to 40 hours for a complete cycle. Fruits and vegetables with high water content may take longer, while items with less moisture content might dry more quickly. It's important to monitor the process closely and adjust parameters as needed to ensure complete drying.
A DIY freeze dryer can be used to preserve a wide variety of foods, similar to commercial units. This includes fruits, vegetables, meats, dairy products, and even complete meals. Some popular items for freeze drying include:
- Fruits: berries, apples, bananas
- Vegetables: peas, corn, carrots
- Meats: chicken, beef, fish (cooked or raw)
- Dairy: cheese, yogurt
- Meals: soups, stews, pasta dishes
However, foods with very high fat content may not freeze dry as effectively and could have a shorter shelf life.
The quality of freeze-dried food from a DIY freeze dryer can be comparable to commercially freeze-dried products if the system is well-designed and properly operated. DIY freeze dryers can preserve the nutritional content, flavor, and texture of foods effectively. However, consistency may be more challenging to achieve with a homemade system. Commercial freeze dryers often have more precise controls and have undergone extensive testing to optimize their processes. With careful attention to detail and continuous improvement of your DIY system, you can produce high-quality freeze-dried foods, but it may require more monitoring and adjustment compared to commercial units.
