Freeze drying, also known as lyophilization, is a fascinating process that has revolutionized food preservation and various industries. The ability to remove moisture from products while maintaining their structure and nutritional value has made freeze dryers invaluable tools. But what if you're an enthusiast or a small business owner looking to harness this technology without breaking the bank? Can you make your own freeze dryer? Let's dive into this intriguing topic and explore the possibilities, challenges, and considerations involved in creating a DIY freeze dryer.
Before we delve into the DIY aspect, it's crucial to understand what freeze drying entails. Freeze drying is a dehydration process that works by freezing the material, then reducing the surrounding pressure and adding heat to allow the frozen water in the material to sublimate directly from the solid phase to the gas phase.
Freeze drying process diagram
This process typically involves three main stages:
1. Freezing: The product is frozen, usually below -40°C (-40°F).
2. Primary Drying: The pressure is lowered, and heat is added to sublimate the ice.
3. Secondary Drying: The temperature is raised further to remove unfrozen water molecules.
The result is a product that retains its structure, color, and nutritional value, with a significantly extended shelf life.
Commercial freeze dryers are sophisticated machines that can cost anywhere from $2,000 for small home units to over $100,000 for industrial-scale equipment. These machines are designed to handle specific volumes and types of products efficiently and safely.

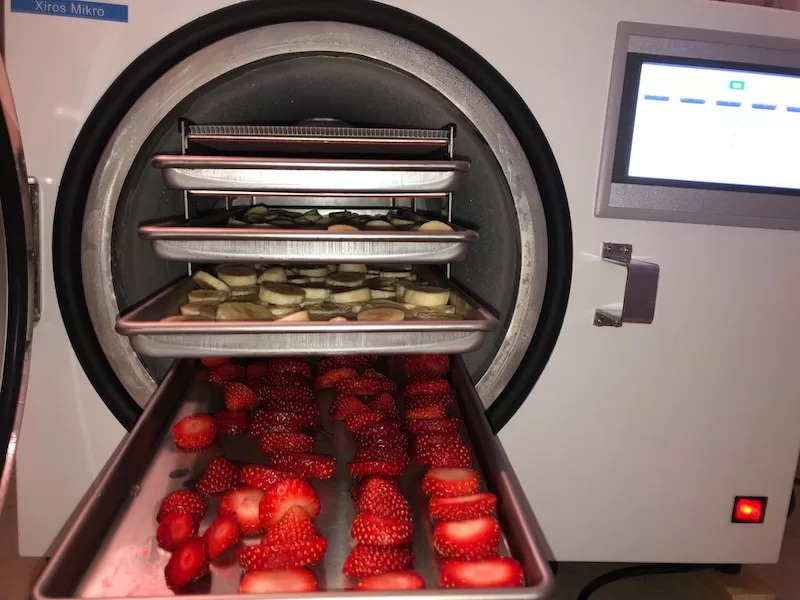

Commercial freeze dryer
On the other hand, DIY freeze dryers are experimental projects undertaken by hobbyists and makers. While they may not match the efficiency and reliability of commercial units, they offer a unique learning experience and the satisfaction of building something from scratch.
To understand if you can make your own freeze dryer, let's break down the essential components:
1. Vacuum Chamber: A sealed container that can withstand low pressures.
2. Vacuum Pump: To remove air and create a low-pressure environment.
3. Refrigeration System: To freeze the product and condense water vapor.
4. Heating Element: To provide energy for sublimation.
5. Control System: To monitor and adjust temperature and pressure.
Creating a DIY freeze dryer is not for the faint of heart. It requires a solid understanding of thermodynamics, vacuum technology, and electronics. However, for those up to the challenge, it can be an incredibly rewarding project.
The vacuum chamber is the heart of your freeze dryer. It needs to be strong enough to withstand the pressure difference and maintain a seal. Some DIY enthusiasts have repurposed pressure cookers or custom-built chambers using thick acrylic or metal.
DIY vacuum chamber
A good vacuum pump is crucial. Two-stage rotary vane pumps are often used in DIY setups. It's important to choose a pump that can achieve and maintain the low pressures required for freeze drying.
This is perhaps the most challenging aspect of a DIY freeze dryer. Commercial units use specialized refrigeration systems, but DIY versions often rely on modified freezer compressors or even dry ice baths.
A controllable heating element is necessary to provide energy for sublimation without melting the product. This could be as simple as a heating pad or as complex as a custom-built heating plate.
Monitoring and controlling temperature and pressure is critical. Many DIY builders use Arduino or Raspberry Pi systems to create custom control interfaces.
While building a freeze dryer is a complex project, here's a simplified overview of the steps involved:
1. Design and Planning: Sketch out your design and list all required components.
2. Build the Vacuum Chamber: Construct or modify a container to serve as your vacuum chamber.
3. Install the Vacuum Pump: Connect the pump to your chamber with appropriate fittings and valves.
4. Set Up the Cooling System: Install your chosen method of freezing the product.
5. Add the Heating Element: Incorporate a controllable heat source.
6. Implement the Control System: Set up sensors and a control interface.
7. Testing and Calibration: Rigorously test your system for safety and effectiveness.
Safety should be your top priority when building a DIY freeze dryer. Here are some key considerations:
- Pressure Risks: Ensure your chamber can withstand vacuum pressures.
- Electrical Safety: Properly insulate all electrical components.
- Refrigerant Handling: If using a compressor, be cautious with refrigerants.
- Food Safety: If freeze-drying food, maintain strict hygiene standards.
While building your own freeze dryer can be exciting, it's important to recognize its limitations:
- Efficiency: DIY units are often less efficient than commercial models.
- Capacity: Homemade freeze dryers typically have smaller capacities.
- Reliability: Without professional engineering, DIY units may be less reliable.
- Cost: The initial savings might be offset by lower efficiency and potential failures.
If building a freeze dryer from scratch seems daunting, consider these alternatives:
1. Modified Freezer Method: Some enthusiasts have experimented with modifying chest freezers to create a rudimentary freeze-drying environment.
2. Vacuum Chamber Drying: While not true freeze-drying, using a vacuum chamber with desiccants can achieve similar results for some applications.
3. Community Workshops: Some makerspaces and community workshops may have freeze dryers available for use.
DIY freeze dryers, despite their limitations, have found applications in various fields:
- Food Preservation: Hobbyists use them to create long-lasting emergency food supplies.
- Taxidermy: Small-scale taxidermists have employed DIY freeze dryers for their work.
- Scientific Research: Some researchers use custom-built units for specialized experiments.
As technology advances, the possibility of creating more efficient and reliable DIY freeze dryers increases. 3D printing, improved vacuum technology, and more accessible control systems are making it easier for enthusiasts to experiment with freeze-drying technology.
Creating your own freeze dryer is a challenging but potentially rewarding project. While it may not match the performance of commercial units, a DIY freeze dryer can provide valuable insights into the principles of lyophilization and offer a unique tool for small-scale applications. However, it's crucial to approach such a project with a solid understanding of the underlying science, a commitment to safety, and realistic expectations about the results.
Whether you decide to embark on building your own freeze dryer or opt for a commercial unit, the world of freeze-drying offers exciting possibilities for food preservation, scientific research, and creative projects. As technology continues to evolve, we may see more accessible and efficient DIY options emerge, further democratizing this fascinating preservation technique.
Building a DIY freeze dryer for personal use is generally legal. However, if you plan to use it for commercial purposes, especially in food production, you'll need to comply with local health and safety regulations. Always check with your local authorities before using a homemade freeze dryer for any commercial applications.
The cost of building a DIY freeze dryer can vary widely depending on the components you choose and your existing tools and skills. A basic setup might cost anywhere from $500 to $2,000. However, more sophisticated designs with better controls and higher capacity could cost significantly more. It's important to budget not just for initial construction but also for potential upgrades and maintenance.
The most significant challenges typically include:
- Achieving and maintaining the necessary low pressures
- Creating an effective and efficient cooling system
- Developing a reliable control system for temperature and pressure
- Ensuring the safety and structural integrity of the vacuum chamber
- Troubleshooting issues that arise during the freeze-drying process
While a DIY freeze dryer can theoretically handle many types of food, its effectiveness may vary. Foods with high water content, like fruits and vegetables, are generally easier to freeze-dry. However, foods with high fat content or complex structures may be more challenging. It's important to experiment and adjust your process for different types of food. Always prioritize food safety and be cautious when freeze-drying meats or dairy products.
DIY freeze dryers are typically less energy-efficient than commercial models. Commercial units are designed with optimized systems for cooling, heating, and maintaining a vacuum, which operate more efficiently. A homemade unit may consume more electricity and take longer to complete the freeze-drying process. However, for small-scale or occasional use, the difference in energy consumption may not be significant enough to outweigh the cost savings of building your own unit.
