Freeze drying, also known as lyophilization, is a preservation method that removes moisture from food and other materials while maintaining their structure and nutrients. One of the critical aspects of this process is the temperature at which it occurs. Understanding how cold a freeze dryer can get is essential for optimizing the freeze-drying process and ensuring the quality of the final product. This article will delve into the temperature ranges of freeze dryers, how they operate, and the factors influencing their performance.

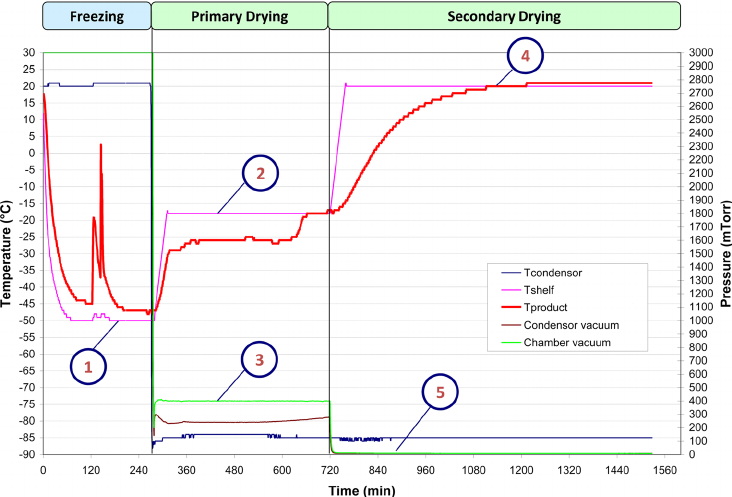

Freeze drying involves three primary stages: freezing, primary drying (sublimation), and secondary drying (desorption). Each of these stages requires precise temperature control to ensure effective moisture removal without damaging the product.
During the freezing stage, the material is cooled to a temperature where water turns into ice. Typically, this temperature can range from -20°C to -50°C (-4°F to -58°F). The goal is to ensure that all moisture is frozen before moving on to the sublimation phase.
In the primary drying stage, the pressure in the freeze dryer is lowered, and heat is applied to facilitate sublimation—the process where ice turns directly into vapor without becoming liquid. The shelf temperatures during this stage can vary widely depending on the product being dried but generally remain between -20°C and +60°C (-4°F to +140°F).
The secondary drying stage aims to remove any remaining moisture that may still be present in the product after sublimation. This stage typically involves higher temperatures, often reaching up to +65°C (149°F), depending on the product's sensitivity.
The temperature specifications of freeze dryers can vary based on their design and intended use. Here are some common specifications:
| Type of Freeze Dryer | Shelf Temperature Range | Condenser Temperature |
|---|---|---|
| General Purpose | -20°C to +60°C | -40°C |
| Low Temperature | -35°C to +60°C | -55°C |
| Cascade Refrigeration | -55°C to -60°C | -75°C |
These specifications indicate that different types of freeze dryers are suited for various applications, from food preservation to pharmaceutical products.
Several factors influence how cold a freeze dryer can get:

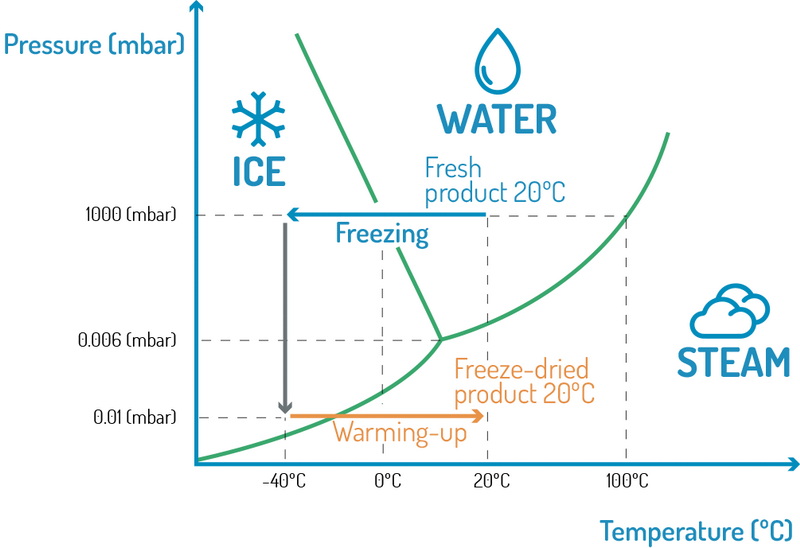

The vacuum pressure inside the freeze dryer significantly affects the boiling point of water. Lower pressure allows for lower temperatures during sublimation. For example:
- At 1 mbar pressure, the boiling point of water is approximately -20°C.
- At 0.5 mbar pressure, it drops to about -27°C.
- At 0.2 mbar pressure, it can reach around -35°C.
This relationship means that achieving a high vacuum can enhance the efficiency of the freeze-drying process by allowing lower operating temperatures.
Different materials have varying thermal properties and moisture content, which can affect how they respond to freezing and drying temperatures. For instance, porous materials may require different settings compared to denser products.
The design and technology used in a freeze dryer also play a crucial role in determining its temperature capabilities. Advanced models may feature better insulation and more efficient refrigeration systems, allowing them to reach lower temperatures more effectively.
Choosing the right temperature settings for different products is vital for successful freeze drying. Here are some guidelines:
- Fruits and Vegetables: Typically require an initial freezing temperature of around -30°C (-22°F) for optimal results.
- Meats: Should be frozen at lower temperatures, often around -40°C (-40°F), to preserve texture and flavor.
- Pharmaceuticals: Generally require precise temperature control; hence specialized freeze dryers with lower shelf temperatures are used.
Many people assume that all freeze dryers operate under similar conditions; however, variations in design lead to significant differences in performance and temperature capabilities.
While lower temperatures can enhance preservation, they are not always necessary or beneficial for every product. Some items may dry better at slightly higher temperatures due to their specific moisture content and structure.
Understanding how cold a freeze dryer gets is crucial for optimizing its use across various applications—from food preservation to pharmaceuticals. By recognizing the importance of temperature control during each stage of the freeze-drying process, users can achieve better outcomes in terms of product quality and efficiency.
The ideal freezing temperature for fruits is typically around -30°C (-22°F) to ensure optimal preservation during freeze drying.
Lower vacuum pressure allows for lower boiling points of water, enabling more efficient sublimation at reduced temperatures.
Not all foods are suitable for freeze drying; items with high fat content or those that do not freeze well may not yield good results.
Common issues include uneven drying, product collapse due to improper temperature settings, and insufficient vacuum levels leading to incomplete moisture removal.
You can check dryness by weighing your trays before and after drying; minimal weight loss indicates that food is adequately dried.
