Building a freeze dryer machine at home can be a rewarding project, allowing you to preserve food and create unique culinary delights. This comprehensive guide will walk you through the necessary materials, step-by-step construction, and operational tips to create your freeze dryer.

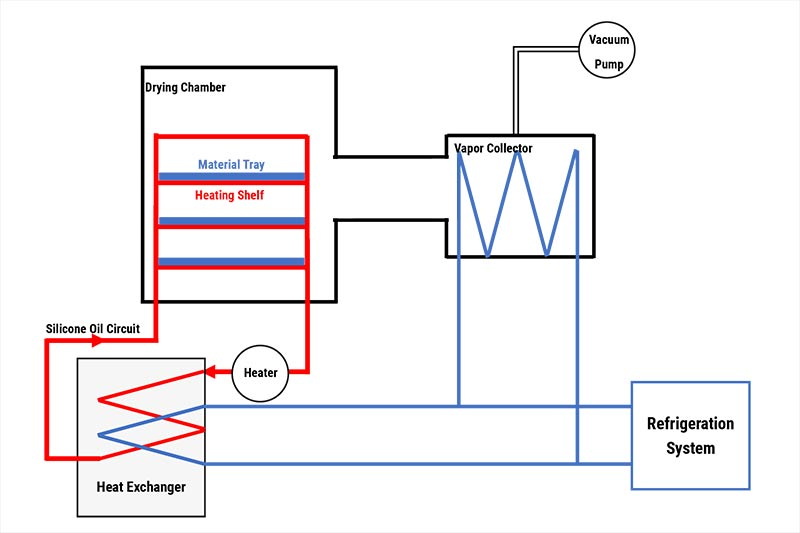

Freeze drying, or lyophilization, is a process that removes moisture from food while preserving its structure and nutritional value. The process involves freezing the food, reducing the pressure, and then allowing the frozen water in the food to sublimate directly into vapor. This method is commonly used for preserving fruits, vegetables, and even complete meals.
The freeze-drying process consists of three main phases:
1. Freezing Phase: The material is frozen at temperatures well below zero. Rapid freezing is preferred as it creates smaller ice crystals, which leads to a more uniform drying process and minimizes damage to the cellular structure of the material.
2. Primary Drying (Sublimation): In this phase, the pressure is lowered, allowing ice to sublimate directly into vapor without passing through the liquid phase. This step is crucial for removing about 95-98% of the water content from the product.
3. Secondary Drying (Adsorption): The final phase involves removing any remaining moisture that may be bound to the material. This ensures that the freeze-dried product has a long shelf life and retains its quality.
Before starting your project, gather the following materials:
- Vacuum Pump: Essential for creating low pressure needed for sublimation. Look for a two-stage rotary vane vacuum pump capable of reaching at least 0.1 millibar.
- Vacuum Chamber: This airtight container holds the items being freeze-dried. Stainless steel or polycarbonate are ideal choices.
- Cooling System: You can use dry ice or a mechanical refrigeration unit to maintain low temperatures during the drying process.
- Silicone Gaskets: These ensure an airtight seal in your vacuum chamber.
- Connectors and Tubing: Use polyethylene tubing and brass compression connectors to secure connections between components.
- Insulation Material: Styrofoam or foam sheets help maintain low temperatures inside the chamber.
The vacuum chamber is critical for effective freeze drying. Here's how to build it:
1. Select Chamber Material: Choose a durable material like stainless steel for longevity and resistance to pressure changes.
2. Seal with Gaskets: Use silicone gaskets around the lid to ensure an airtight seal.
3. Insulate the Chamber: Line the interior with foam sheets to maintain cold temperatures efficiently.
4. Design Considerations: The chamber should be large enough to accommodate the items you plan to freeze dry while allowing for airflow around them.
The vacuum pump creates the necessary low-pressure environment:
1. Choose Your Pump: A two-stage rotary vane vacuum pump is recommended for its efficiency.
2. Connect to Chamber: Use a 1/4" flare union to connect the pump to your vacuum chamber securely.
3. Test Connections: Run the pump without any load to check for leaks and ensure it reaches desired pressure levels.
Maintaining low temperatures is crucial for effective freeze drying:
1. Select Cooling Method: Decide between using dry ice or a mechanical cooling system based on your budget and frequency of use.
2. Install Cooling Components:
- For dry ice, place it in a container that fits inside your chamber.
- For mechanical systems, connect it to an external power source and set desired temperature settings.
3. Insulate Properly: Ensure all connections are sealed to prevent air ingress that could disrupt cooling efficiency.
Once all components are ready, it's time for assembly:
1. Connect All Components: Start by attaching the vacuum pump to the chamber using appropriate tubing and connectors.
2. Electrical Setup: Safely connect any electrical components required for your cooling system and control units.
3. Final Assembly Checks: Go through each connection and component to ensure everything is securely fastened and positioned correctly before testing your machine.
Once assembled, follow these steps for operation:
1. Pre-Freezing Items: Place items in your home freezer until they are completely frozen before transferring them to the vacuum chamber.
2. Start the Vacuum Pump: Turn on the vacuum pump to create a low-pressure environment in the chamber.
3. Monitor Temperature and Pressure: Keep an eye on both parameters throughout the process; adjustments may be necessary based on your specific setup.
4. Drying Time: Depending on what you are freeze-drying, this process can take anywhere from several hours to over a day.
5. Completion Check: Ensure that all moisture has been removed before storing your freeze-dried items in airtight containers.
To ensure longevity and optimal performance of your freeze dryer, regular maintenance is essential:
- Vacuum Pump Maintenance: Regularly check oil levels if using an oil-based pump; change oil every few runs or when it appears dark or cloudy.
- Chamber Cleaning: After each use, wipe down surfaces with warm soapy water and ensure no residue remains inside that could lead to contamination.
- Seal Integrity Checks: Inspect silicone gaskets regularly for wear or damage; replace them as needed to maintain an airtight seal.
- Temperature Calibration: Periodically test temperature sensors within your system; recalibrate if discrepancies arise during operation.
- Ventilation Requirements: Ensure that your freeze dryer operates in a well-ventilated area; high heat output can affect performance if airflow is restricted.
Freeze drying has numerous applications across various industries:
- Food Preservation: Ideal for preserving fruits, vegetables, meats, and complete meals without compromising nutritional value or flavor.
- Pharmaceuticals: Used extensively in producing vaccines and other heat-sensitive drugs by maintaining their stability during storage.
- Biological Samples: Commonly applied in laboratories for preserving microorganisms and biological materials without degradation.
- Pet Food Production: Helps retain protein content while creating lightweight products that are easy to store and transport.
- Chemical Products: Certain chemicals require freeze drying as part of their production processes for quality preservation.
Building a freeze dryer machine at home requires careful planning, appropriate materials, and attention to detail during assembly and operation. With this guide, you can successfully create a functional freeze dryer that allows you to preserve food effectively while exploring new culinary possibilities.
By understanding how freeze drying works, maintaining your machine properly, and applying it across various applications, you can enjoy high-quality preserved foods or products tailored specifically to your needs.
You will need a vacuum pump, vacuum chamber, cooling system (dry ice or mechanical), silicone gaskets, connectors, tubing, and insulation material like foam sheets.
The drying time can vary significantly based on what you're freeze-drying but typically ranges from several hours up to 24 hours or more depending on moisture content and size of items.
No, it's essential to use a two-stage rotary vane vacuum pump capable of reaching at least 0.1 millibar for effective moisture removal during freeze drying.
Yes, as long as you follow safety protocols when handling equipment like vacuum pumps and dry ice, building your own freeze dryer can be safe and rewarding.
You can freeze dry almost any food item including fruits, vegetables, meats, and complete meals; however, some foods may require specific handling or preparation techniques for best results.
