The demand for freeze dryers has surged as more people look to preserve food and other materials without sacrificing quality. This guide will provide you with the knowledge to construct your own freeze dryer, enabling you to enjoy the benefits of freeze-dried products at home.

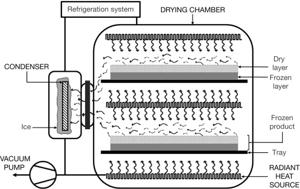

Freeze drying works on the principle of sublimation, where ice transitions directly from a solid state to vapor without passing through the liquid phase. This process occurs in a vacuum chamber under low pressure and temperature conditions below the triple point of water.
1. Freezing: The material is frozen solid.
2. Vacuum Application: A vacuum is created to lower the pressure.
3. Sublimation: Ice converts directly into vapor, leaving behind dry material.
4. Condensation: Water vapor is collected on condenser coils.

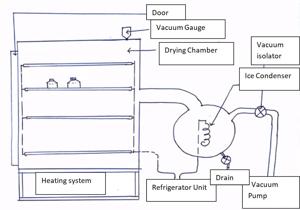

To build a freeze dryer, gather the following materials:
- Vacuum Pump: Creates low pressure necessary for sublimation.
- Vacuum Chamber: Holds the material being dried.
- Condenser Coils: Collect moisture vapor.
- Insulation Material: Maintains low temperatures inside the chamber.
- Silicone Gaskets: Ensures airtight seals.
The vacuum chamber is crucial for creating an environment conducive to freeze drying.
- Stainless steel or polycarbonate container
- Silicone gaskets for sealing
1. Choose a durable material for your chamber.
2. Cut and shape the chamber to your desired size.
3. Install silicone gaskets around the lid for an airtight seal.
Condenser coils are essential for removing moisture during the freeze-drying process.
1. Position coils at the top of the vacuum chamber.
2. Connect coils to your refrigeration unit using leak-proof fittings.
3. Test for leaks and ensure uniform temperature distribution.
The vacuum pump creates the necessary low-pressure environment.
1. Connect the vacuum pump to your vacuum chamber using appropriate tubing.
2. Ensure all connections are tight to prevent air leaks.
3. Test the pump to confirm it achieves desired pressure levels.
Proper electrical connections are vital for safe operation.
1. Wire your refrigeration unit according to manufacturer instructions.
2. Install control panels and sensors as needed.
3. Conduct safety checks before powering on.

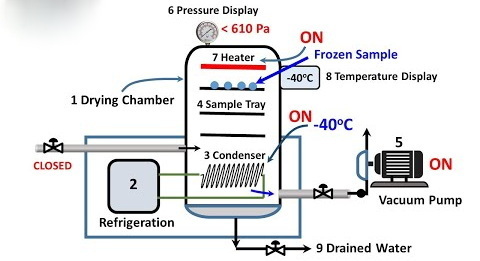

Once your freeze dryer is assembled, follow these steps to operate it effectively:
1. Preparation: Place items in vials or trays within the vacuum chamber.
2. Freezing: Pre-cool items on cold shelves or with dry ice until fully frozen.
3. Start Vacuum: Turn on the vacuum pump and monitor pressure levels.
4. Drying Process: Allow sublimation to occur; this may take several hours to days depending on material volume.
5. Completion: Once drying is complete, replace vacuum with inert gas before sealing items.
Building your own freeze dryer can be a rewarding project that allows you to preserve food and other materials efficiently at home. By following this guide and understanding each component's role in the process, you can create a functional freeze dryer tailored to your needs.
Freeze drying is a preservation method that removes moisture from food or other materials by freezing them and then sublimating the ice under vacuum conditions.
The time required varies based on factors like material type and quantity but typically ranges from several hours to a few days.
It is not recommended as liquids do not freeze well in a typical home freeze dryer setup; however, purees or thick mixtures can be processed if properly contained.
Fruits, vegetables, meats, and prepared meals are excellent candidates for freeze drying due to their nutrient retention and extended shelf life.
Regularly check seals, clean condenser coils, and ensure proper functioning of all components to maintain efficiency and prolong lifespan.
