Freeze drying, also known as lyophilization, is a preservation method that removes moisture from food and other materials, thereby extending their shelf life while retaining their nutritional value and flavor. This process involves three main phases: freezing, primary drying (sublimation), and secondary drying (adsorption). In this article, we will explore the various aspects of freeze dryer machines, including their components, working principles, advantages, applications, and considerations for use.

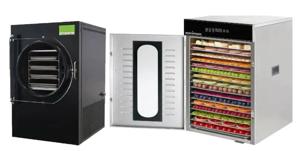

freeze dryer machine_3

Understanding the Freeze Drying Process

1. Freezing Phase

The first step in the freeze drying process is freezing the material to be preserved. This is crucial because it transforms the water content into ice crystals. The freezing can be done using various methods:

- Freezer: The most common method where food is placed in a conventional freezer.

- Chilled Bath: A shell freezer can be used to cool the product rapidly.

- In-Situ Freezing: The freeze dryer itself can initiate the freezing process.

The goal during this phase is to cool the material below its triple point to ensure that sublimation occurs instead of melting. This helps preserve the food's structure and nutrients.

2. Primary Drying (Sublimation)

Once the material is frozen, the next phase is primary drying. In this stage, the pressure in the chamber is lowered while heat is applied to facilitate sublimation—the transition of ice directly to vapor without passing through a liquid state.

- Vacuum Pump: This component reduces atmospheric pressure in the chamber.

- Heat Source: Gentle heat is applied to encourage sublimation without damaging the food.

During this phase, approximately 95% of the moisture is removed from the product. The vacuum speeds up this process by allowing water vapor to escape more easily.

3. Secondary Drying (Adsorption)

The final phase of freeze drying is secondary drying, where any remaining bound water molecules are removed. This phase involves raising the temperature further than in primary drying to break the bonds between water and the material.

- Residual Moisture: After this phase, most materials can be dried to a residual moisture level of 1-5%.

This three-phase process ensures that freeze-dried products retain their original shape, color, and nutritional content.

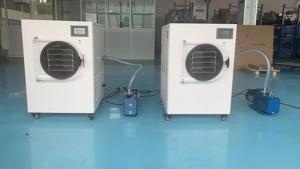

freeze dryer machine_3_1

Key Components of a Freeze Dryer Machine

A freeze dryer consists of several essential components that work together to facilitate the freeze-drying process:

Component Function Description
Freezing Chamber Initiates freezing of the product and creates large ice crystals within its structure.
Vacuum Pump Reduces pressure in the chamber to enable sublimation.
Shelf Heat Source Provides controlled heat necessary for sublimation without damaging product integrity.
Cooling System Maintains low temperatures during freezing and primary drying phases.
Sensors and Controls Monitor temperature and pressure for optimal drying conditions.

These components work synergistically to ensure effective freeze drying.

Advantages of Using a Freeze Dryer

Freeze dryers offer several benefits over traditional preservation methods such as dehydration:

- Nutrient Retention: Freeze-dried foods retain more vitamins and minerals compared to dehydrated foods.

- Long Shelf Life: Properly freeze-dried products can last for years without refrigeration.

- Lightweight: The removal of moisture makes freeze-dried foods significantly lighter than their fresh counterparts.

- Versatility: A wide variety of foods can be freeze-dried, including fruits, vegetables, meats, and complete meals.

Applications of Freeze Dryers

Freeze dryers are widely used across various industries:

1. Food Preservation

In the food industry, freeze dryers are employed for preserving fruits, vegetables, meals, and snacks. They help maintain flavor and texture while extending shelf life.

2. Pharmaceutical Industry

Freeze drying plays a critical role in stabilizing sensitive biological materials such as vaccines and biologics for storage and transport.

3. Research Laboratories

In laboratories, freeze dryers are used for preserving biological samples without compromising their integrity.

Considerations When Using a Freeze Dryer

While freeze dryers provide numerous advantages, there are some considerations to keep in mind:

- Initial Cost: Freeze dryers can be expensive investments for home users or small businesses.

- Space Requirements: These machines can take up significant counter space.

- Energy Consumption: They typically use more electricity than conventional dehydrators.

Conclusion

A freeze dryer machine is an invaluable tool for preserving food and other materials by removing moisture through a careful process of freezing and sublimation. With its ability to retain nutrients and extend shelf life significantly, it has found applications in both culinary and pharmaceutical fields. Understanding how these machines work and their components can help users make informed decisions about investing in this technology.

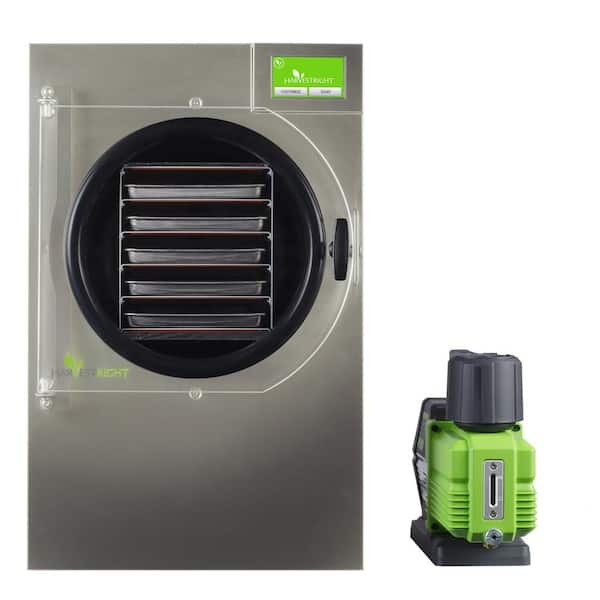

freeze dryer machine_4

Related Questions

1. What foods can be freeze-dried?

Freeze-drying is suitable for a wide range of foods including fruits (like strawberries), vegetables (like peas), meats (like chicken), dairy products (like cheese), and even complete meals.

2. How long does it take to freeze-dry food?

The entire process can take anywhere from 24 to 48 hours depending on the type of food being processed and its moisture content.

3. Can I use a regular freezer instead of a freeze dryer?

While you can pre-freeze food in a regular freezer before placing it in a freeze dryer, a conventional freezer cannot replicate the full freeze-drying process which includes vacuum pressure and controlled heating.

4. How much does a home freeze dryer cost?

Home freeze dryers typically range from $2,000 to $5,000 depending on brand and capacity.

5. Is freeze-dried food safe to eat?

Yes, freeze-dried foods are safe to eat as long as they have been processed correctly and stored properly after drying.
