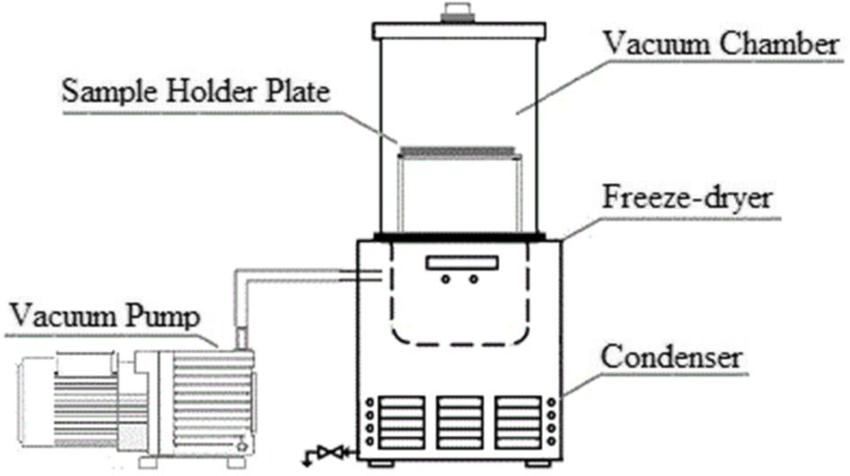

A freeze dryer, also known as a lyophilizer, is a sophisticated piece of equipment designed to preserve perishable materials by removing moisture through a process called freeze-drying. This method is widely used in various industries, including food preservation, pharmaceuticals, and biotechnology. The primary goal of freeze-drying is to extend the shelf life of products while maintaining their original quality, flavor, and nutritional value.

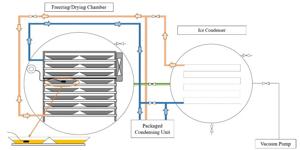

The freeze-drying process involves three main phases: freezing, primary drying (sublimation), and secondary drying (adsorption). Each phase plays a crucial role in ensuring the effective removal of water from the product.
In the first phase, the material is frozen to a temperature typically below -40°C. This rapid freezing is essential as it prevents the formation of large ice crystals that can damage the cellular structure of the product. Various methods can be used for freezing, including:
- Freezer: Standard household or commercial freezers can be used.
- Chilled Bath: A shell freezer can provide more controlled freezing.
- Shelf in Freeze Dryer: Directly freezing on shelves within the freeze dryer itself.

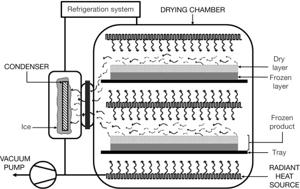

Once frozen, the pressure inside the freeze dryer is reduced significantly, creating a vacuum environment. Heat is then applied to facilitate sublimation, where ice transitions directly from solid to vapor without passing through the liquid phase. This phase removes approximately 95% of the moisture from the material.
In this final phase, any remaining moisture that is bound to the material is removed. The temperature is slightly increased to break the bonds between water molecules and the product. After this phase, most materials can achieve a residual moisture content of 1-5%.
Freeze drying offers several advantages over traditional drying methods:
- Preservation of Nutritional Value: Freeze-dried foods retain most of their vitamins and minerals.
- Extended Shelf Life: Products can last for years without refrigeration.
- Lightweight and Compact: The removal of water significantly reduces weight and volume.
- Retention of Flavor and Texture: Foods maintain their original taste and structure when rehydrated.
Freeze dryers are utilized across various sectors:
- Food Industry: For preserving fruits, vegetables, meals, and snacks.
- Pharmaceuticals: To stabilize vaccines and other sensitive compounds.
- Biotechnology: For preserving biological samples such as bacteria and enzymes.
With advancements in technology, home freeze dryers have become increasingly popular among culinary enthusiasts and preppers. These compact machines allow users to preserve leftovers or bulk foods efficiently.
1. Pre-cool the Machine: Turn on your freeze dryer 30 minutes before loading.
2. Prepare Food: Cut food into medium-sized pieces for even drying.
3. Load Trays: Place food on trays without stacking.
4. Start the Cycle: Close the drain valve and begin the automatic cycle.
5. Check for Dryness: After completion, check if food is dry by breaking it in half.
While freeze drying is an effective preservation method, some common issues may arise:
- Melt-back or Collapse: Occurs if products are heated too high during drying.
- Condenser Overload: Too much vapor can overwhelm the condenser.
- Insufficient Refrigeration: Can lead to incomplete drying.
In summary, freeze dryers are invaluable tools for preserving a wide range of materials while maintaining their quality and extending shelf life. Whether used in commercial settings or at home, understanding how to operate these machines effectively can lead to delicious and long-lasting results.
Freeze-dried foods include fruits, vegetables, meats, soups, and even complete meals.
The entire process typically takes between 24 to 50 hours depending on various factors like product size and composition.
Yes, rehydrating freeze-dried foods is simple; just add water and wait for them to absorb it.
Absolutely! Freeze-dried food is safe and retains its nutritional value when properly stored.
Store them in airtight containers with oxygen absorbers in a cool, dark place for optimal shelf life.
