Freeze drying, also known as lyophilization, is a sophisticated preservation method used to extend the shelf life of perishable materials by removing moisture while maintaining their structure and nutritional content. This process is widely utilized in various industries, including food, pharmaceuticals, and biotechnology. Understanding how a freeze dryer works involves exploring the stages of freeze drying, its components, benefits, and applications.
Freeze drying is a dehydration process that involves freezing a product and then reducing the pressure to allow the frozen water in the material to sublimate directly into vapor. This method preserves the quality of the product better than traditional drying methods because it prevents the formation of ice crystals that can damage cellular structures.
The freeze drying process consists of three main stages:
1. Freezing
2. Primary Drying (Sublimation)
3. Secondary Drying (Adsorption)
The first step in freeze drying is to freeze the product. This is typically done at temperatures around -40°C (-40°F) or lower. The freezing process solidifies the water content into ice crystals, which helps preserve the structural integrity of the material. Rapid freezing is often preferred to prevent large ice crystal formation that can rupture cell walls.
Rapid freezing not only preserves texture but also enhances the product's overall quality by minimizing cellular damage. In food products, for instance, this process helps maintain flavor and nutritional value.
Once the product is frozen, a vacuum is created in the freeze dryer. This vacuum allows the frozen water to sublimate directly from solid ice to vapor without passing through a liquid phase. Heat is applied to facilitate this process, usually through heated shelves or radiant heat sources.
During sublimation, heat energy is transferred to the ice crystals, causing them to convert directly into vapor. This phase is critical as it removes approximately 95% of the moisture from the product. The control of temperature and pressure during this stage is vital; too much heat can cause melting rather than sublimation, while insufficient heat can prolong drying times.
After primary drying, some residual moisture may still remain in the product. The secondary drying phase involves increasing the temperature slightly to remove any remaining water molecules that are tightly bound to the product. This ensures that the final moisture content is between 1-5%, which is optimal for long-term storage.
In this phase, water molecules are adsorbed onto the surface of the product rather than being trapped within it. This step significantly enhances shelf stability and prevents microbial growth.

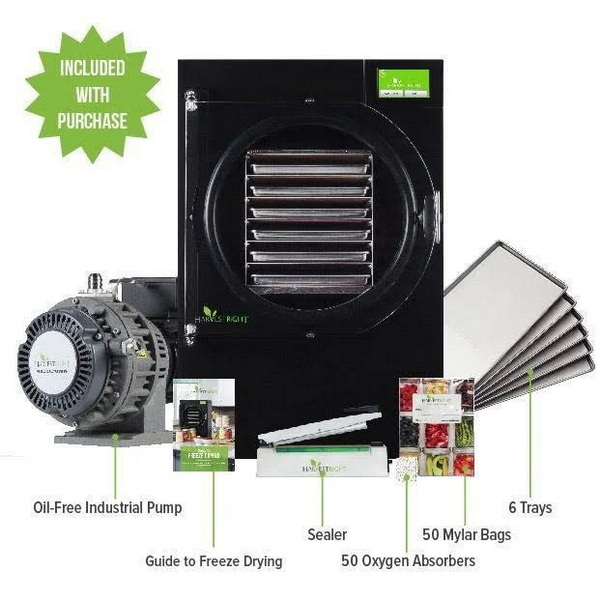

A typical freeze dryer consists of several key components that work together to carry out the lyophilization cycle:
| Component | Function |
|---|---|
| Vacuum Chamber | Creates a vacuum environment for sublimation. |
| Shelves | Holds the product and maintains consistent temperature during drying. |
| Heat Transfer Fluid | Circulates fluid to regulate shelf temperature. |
| Condenser | Cools down vapor to form ice and maintain vacuum conditions. |
| Refrigeration System | Keeps products cold during drying stages. |
| Heater | Provides controlled heat for sublimation. |
| Vacuum Pump | Maintains vacuum by removing air from the chamber. |
| Control System | Monitors and adjusts temperature and pressure throughout the process. |
- Vacuum Chamber: The heart of any freeze dryer, this chamber allows for controlled environmental conditions where sublimation can occur efficiently.
- Shelves: Often made from stainless steel for durability and easy cleaning, shelves are designed to hold trays or containers filled with products.
- Condenser: This component cools vapor back into ice, ensuring that moisture does not re-enter the chamber during sublimation.
- Control System: Modern freeze dryers come equipped with advanced control systems that allow operators to monitor real-time data on temperature, pressure, and moisture levels.
Freeze drying offers numerous advantages over traditional preservation methods:
- Longer Shelf Life: Products can last months or even years without refrigeration.
- Nutrient Retention: The process preserves essential nutrients, flavors, and textures better than other dehydration methods.
- Lightweight: Freeze-dried products are significantly lighter due to reduced moisture content, making them easier to transport.
- Convenience: They can be easily rehydrated by adding water; thus they are ideal for camping and emergency food supplies.
- No Preservatives Needed: Freeze-dried foods do not require chemical preservatives since they are shelf-stable due to low moisture content.
Freeze drying has diverse applications across various sectors:
- Food Industry: Used for preserving fruits, vegetables, meats, and ready-to-eat meals; it allows consumers to enjoy nutritious meals with extended shelf life.
- Pharmaceuticals: Essential for stabilizing vaccines and biologics; many medications require lyophilization for safe storage and transport.
- Biotechnology: Preserves sensitive biological samples for research and diagnostics; it's crucial in maintaining sample integrity over time.
- Emergency Preparedness: Ideal for long-term food storage in emergency kits; freeze-dried meals are lightweight and easy to prepare.
Recent advancements in freeze-drying technology have led to improvements in efficiency and effectiveness:
- Continuous Freeze Drying: New systems allow for continuous processing rather than batch processing, significantly increasing throughput.
- Smart Freeze Dryers: Modern units come equipped with IoT capabilities that allow remote monitoring and control via smartphones or computers.
- Improved Energy Efficiency: Advances in insulation materials and design have made freeze dryers more energy-efficient, reducing operational costs.
In summary, freeze dryers play a crucial role in preserving perishable materials by utilizing sublimation to remove moisture while maintaining quality and nutritional value. This method has become increasingly popular due to its effectiveness and versatility across multiple industries. From food preservation to pharmaceuticals, freeze drying offers an array of benefits that make it an essential technology in today's world.
Freeze drying is a dehydration process that removes moisture from perishable materials by freezing them and then allowing sublimation under vacuum conditions.
The duration of freeze drying can vary based on factors such as product type and size but typically ranges from several hours to a few days.
Most foods can be freeze dried; however, items with high fat content may not preserve well due to rancidity issues.
Yes, freeze dried food retains most of its nutrients and flavor compared to other preservation methods.
To rehydrate freeze dried food, simply add water according to package instructions or until desired consistency is achieved.
