Freeze drying, also known as lyophilization, is a sophisticated dehydration process that preserves a wide range of materials, including food and pharmaceuticals, by removing moisture while maintaining their structural integrity and nutritional value. This article delves into the workings of freeze dryers, exploring their components, the stages of the freeze-drying process, and their applications.
Freeze drying is a low-temperature dehydration technique that involves freezing the product and then lowering the surrounding pressure to allow the frozen water in the material to sublimate directly into vapor. This method is particularly advantageous for preserving sensitive materials that may degrade under heat or other drying methods.
The concept of freeze drying dates back to ancient civilizations, where indigenous peoples would use natural freezing conditions to preserve food. However, modern freeze drying began in the early 20th century, primarily for military applications during World War II, where it was used to preserve blood plasma and other medical supplies. Since then, advancements in technology have expanded its use across various industries.
The importance of freeze drying lies in its ability to maintain the quality and safety of perishable items. In an era where food waste is a significant concern, freeze drying offers a solution by extending shelf life without the need for preservatives or refrigeration.
Sublimation is the key principle behind freeze drying. It occurs when ice transitions directly from a solid state to a gaseous state without passing through the liquid phase. This process requires specific conditions of temperature and pressure, typically below the triple point of water (0.0098°C and 0.533 kPa).
Understanding sublimation requires familiarity with the phase diagram of water, which illustrates the states of water under varying temperature and pressure conditions. In freeze drying, we operate within a specific region that allows ice to sublimate directly into vapor without forming liquid water.
- Preservation of Nutritional Value: Freeze drying helps retain the original flavor, aroma, and nutritional content of food products.
- Extended Shelf Life: By removing moisture, freeze-dried products can be stored for extended periods without spoilage.
- Lightweight: The removal of water makes freeze-dried products significantly lighter and easier to transport.
- Reduced Volume: Freeze-dried products occupy less space compared to their fresh counterparts, making storage more efficient.

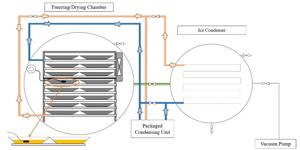

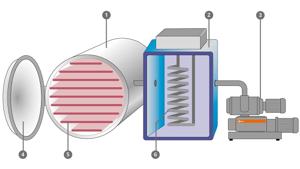

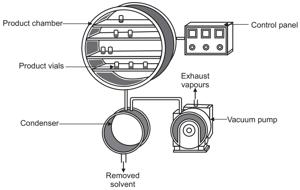

A typical freeze dryer consists of several essential components that work together to facilitate the lyophilization process:
| Component | Function |
|---|---|
| Vacuum Chamber | Contains the product and creates a vacuum environment for sublimation. |
| Shelves | Hold the product and maintain consistent temperature during drying. |
| Heat Transfer Fluid (HTF) | Circulates fluid to control shelf temperatures for optimal drying. |
| Condenser | Cools vapor to remove moisture by turning it back into ice. |
| Refrigeration System | Maintains low temperatures during the initial freezing phase. |
| Vacuum Pump | Creates and maintains the vacuum necessary for sublimation. |
| Control System | Monitors and adjusts temperature and pressure throughout the process. |
The vacuum chamber is one of the most critical components in a freeze dryer. It creates an environment with low pressure that facilitates sublimation. The chamber must be airtight to maintain this vacuum, preventing any external air from entering during the process.
Shelves within the vacuum chamber hold the product being dried. They are typically made from stainless steel or aluminum for durability and ease of cleaning. The shelves can be heated or cooled depending on whether heat needs to be applied during primary or secondary drying phases.
The condenser plays a vital role in capturing moisture vapor released during sublimation by cooling it back into ice. This prevents moisture from re-entering the vacuum chamber and ensures efficient removal of water from the product.
The freeze-drying process can be broken down into several distinct stages:
Before freeze drying begins, pretreatment may be necessary to stabilize reactive products or increase surface area for better moisture removal. Common pretreatments include blanching fruits or vegetables to deactivate enzymes that could affect quality during storage.
In this stage, the product is rapidly frozen to temperatures typically between -40°C to -80°C (-40°F to -112°F), ensuring that ice crystals form without damaging the product structure. Rapid freezing is crucial as it leads to smaller ice crystals which minimize cellular damage.
During primary drying, the pressure is lowered significantly (often below 0.1 atm), allowing ice to sublimate directly into vapor without passing through a liquid phase. This phase can last several hours or even days depending on factors such as product thickness and initial moisture content.
This final stage involves further lowering the moisture content by raising the temperature slightly (usually between 20°C to 30°C) to remove any remaining water molecules that are bound to the product but not easily removed through sublimation alone.
Freeze drying is widely used across various industries:
In the food industry, freeze-dried products include fruits like strawberries and apples, vegetables such as peas and corn, and instant meals like soups and stews. The process retains flavors and nutrients while providing convenience for consumers who seek long-lasting food options.
Lyophilization is crucial for preserving vaccines, antibiotics, and other sensitive drugs that require stability at room temperature without refrigeration. It allows pharmaceutical companies to produce stable formulations that can be easily transported and stored.
Biological samples such as enzymes, antibodies, and proteins are often freeze-dried for long-term storage without losing their efficacy or activity levels.
- Cosmetics: Some cosmetic ingredients are freeze-dried to preserve their properties before being reconstituted in formulations.
- Research: Scientists use freeze drying to preserve biological samples for analysis without degradation over time.
Freeze drying is an invaluable technology that allows for effective preservation of sensitive materials while maintaining their quality and extending shelf life. Understanding how freeze dryers work—through sublimation under controlled conditions—enables industries to utilize this method effectively for food preservation, pharmaceuticals, biotechnology, cosmetics, and beyond.
As we continue to face challenges related to food waste and preservation in various sectors, innovations in freeze-drying technology will likely play an increasingly vital role in creating sustainable solutions.
Freeze dryers preserve nutritional value, extend shelf life by removing moisture, create lightweight products that are easy to transport, and reduce volume for efficient storage.
Sublimation in freeze drying involves ice turning directly into vapor without becoming liquid when subjected to low pressure and temperature conditions.
Common products include fruits, vegetables, pharmaceuticals like vaccines, biological samples such as enzymes, proteins, instant meals, and even some cosmetic ingredients.
The duration varies based on product characteristics but can last from several hours to days during primary drying; secondary drying may take additional time depending on moisture levels.
Key components include a vacuum chamber (to create low-pressure conditions), shelves (to hold products), a condenser (to capture moisture), a refrigeration system (to maintain low temperatures), a vacuum pump (to maintain vacuum), and a control system (to monitor conditions).
