Freeze drying, or lyophilization, is a sophisticated preservation technique that removes moisture from products while maintaining their structure and nutrients. This process is widely used in various industries, including food, pharmaceuticals, and biological research. In this article, we will explore how freeze dryers work, the stages of the freeze-drying process, their benefits, and applications.
Freeze drying is a method that involves freezing a product and then reducing the surrounding pressure to allow the frozen water in the product to sublimate directly into vapor without passing through the liquid phase. This technique preserves the original flavor, texture, and nutritional value of the product, making it an ideal choice for long-term storage.
Moisture is a primary factor in the spoilage of food and other perishable items. Bacteria, molds, and yeasts thrive in moist environments, leading to degradation and loss of quality. By removing moisture through freeze drying, products can be stored for extended periods without refrigeration while retaining their essential qualities.

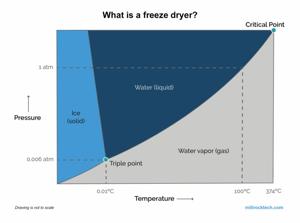

The fundamental principle behind freeze drying is sublimation, where a solid transitions directly into a gas. This occurs under specific temperature and pressure conditions that prevent the formation of liquid water.

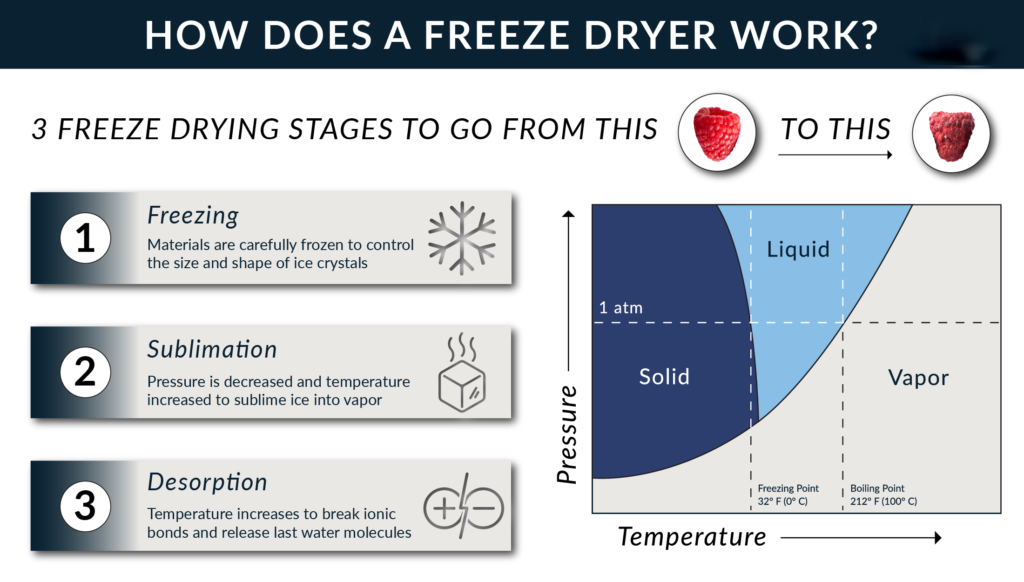

The freeze-drying process typically consists of three main stages:
1. Freezing: The product is cooled to temperatures around -40°C (-40°F) or lower, causing the water within it to solidify into ice crystals. This step is crucial as it preserves the product's cellular structure. Rapid freezing is often preferred to minimize ice crystal formation, which can damage cell walls.
2. Primary Drying (Sublimation): In this stage, a vacuum is created around the frozen product. The reduction in pressure allows ice to sublimate directly into vapor. Heat is applied to facilitate this process, usually through heated shelves. The energy required for sublimation comes from these heated surfaces.
3. Secondary Drying (Adsorption): After most of the moisture has been removed in the primary drying phase, residual moisture is eliminated by slightly increasing the temperature. This ensures that the product is completely dry. The goal here is to reach a moisture content that will prevent microbial growth and degradation during storage.

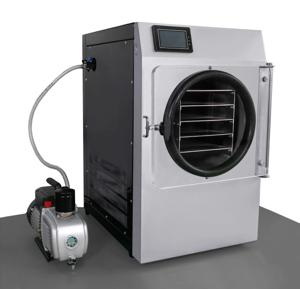

A typical freeze dryer consists of several key components:
- Vacuum Chamber: Where the product is placed for drying.
- Condenser: Cools vapor back into ice.
- Vacuum Pump: Reduces pressure in the chamber.
- Heating Elements: Provide controlled heat during sublimation.
- Control System: Monitors temperature and pressure throughout the process to ensure optimal conditions.
The efficiency of a freeze dryer relies on how well these components work together. The vacuum pump creates a low-pressure environment that facilitates sublimation, while the condenser captures water vapor and turns it back into ice. The heating elements ensure that sufficient energy is provided to promote sublimation without overheating or damaging the product.
Freeze drying offers numerous advantages over traditional preservation methods:
- Longer Shelf Life: By removing moisture, freeze-dried products can last for months or even years without spoiling. This makes them ideal for emergency food supplies or long-term storage.
- Nutrient Retention: The low temperatures used during freeze drying help preserve vitamins and minerals better than other methods like canning or dehydrating.
- Quality Preservation: The original flavor, texture, and appearance are maintained. For example, fruits retain their vibrant colors and taste after being freeze-dried.
- Lightweight and Convenient: Freeze-dried products are lighter and easier to transport compared to their original forms. This makes them popular among hikers and campers who need lightweight food options.
- Versatility: Freeze drying can be applied to a wide range of products beyond food, including pharmaceuticals and biological materials.
Freeze drying has a wide range of applications across various sectors:
- Food Industry: Used to preserve fruits, vegetables, meals, and snacks for camping or emergency supplies. Popular items include freeze-dried strawberries, instant soups, and full meals ready for rehydration.
- Pharmaceuticals: Essential for preserving medications and vaccines that are sensitive to heat and moisture. Lyophilization helps maintain stability and efficacy over time.
- Biological Samples: Used in laboratories to preserve biological materials without compromising their integrity. This includes enzymes, antibodies, and other sensitive compounds.
- Cosmetics: Some cosmetic products are freeze-dried to enhance shelf life while maintaining their efficacy.
One notable example in the food industry involves NASA's use of freeze-dried foods for space missions. Astronauts consume lightweight meals that retain their nutritional value over long periods while being easy to prepare in microgravity environments.
Another example is found in outdoor survival kits where freeze-dried meals provide essential nutrition with minimal weight—perfect for hikers or campers who need sustenance without bulk.
While freeze drying has many benefits, it also presents challenges:
- Cost: Freeze dryers can be expensive to purchase and operate due to high energy requirements.
- Time-Consuming Process: Depending on the material being dried, freeze drying can take significantly longer than other preservation methods.
- Technical Expertise Required: Operating a freeze dryer effectively requires knowledge about temperature control and vacuum systems.
Despite these challenges, many industries find that the benefits outweigh the drawbacks when it comes to preserving quality products.
As technology advances, so does the field of freeze drying. Innovations include:
- Improved Energy Efficiency: New designs aim to reduce energy consumption during both freezing and sublimation stages.
- Automation: Enhanced control systems are being developed for better monitoring and automation of the entire process.
- Microencapsulation Techniques: These techniques are being explored to protect sensitive compounds during freeze drying by encapsulating them within protective coatings.
These advancements promise not only more efficient processes but also broader applications across various fields.
Freeze dryers play a crucial role in extending the shelf life of various products while maintaining their quality and nutritional value. By utilizing sublimation, this technology effectively removes moisture without damaging the structure or properties of the product. With its diverse applications and significant benefits, freeze drying continues to be a preferred method for food preservation and other industries.
Lyophilization is another term for freeze drying, which involves removing moisture from a product while preserving its structure and nutrients.
The duration varies based on the type of material being dried but typically ranges from several hours to days.
Most foods can be freeze-dried; however, some items with high fat content may not yield optimal results due to potential rancidity.
Yes, freeze-dried food is safe to consume as long as it has been processed correctly and stored properly.
To rehydrate freeze-dried food, simply add water according to package instructions or until desired consistency is achieved.
